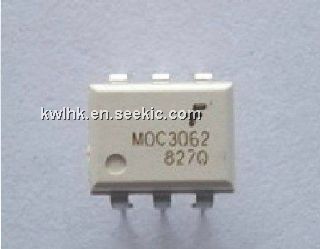

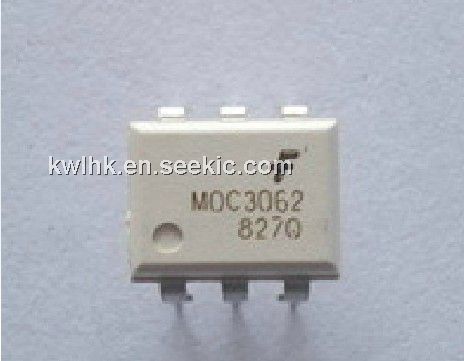

MOC3062

MOC3062, zero-cross phototriac driver optocoupler, 600V, 60Hz, 250 mW, dip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.41~0.51 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.51 / Piece
500 ~ 1000 :	0.47 / Piece
1000 ~ 1500 :	0.41 / Piece

PartNumber:: MOC3062

Brand:: Fairchild Optoelectronics Group - Fairchild | D/C: 08+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-05

From Other Seller

Part Number:MOC3062
US $0.41 - 0.51
Quantity:

piece

Product Summary

The MOC3062 is a 6-pin DIP zero-cross phototriac driver optocoupler. It consists of gallium arsenide infrared emitting diodes optically coupled to monolithic silicon detectors performing the functions of Zero Voltage Crossing bilateral triac drivers. The MOC3062 is designed for use with a triac in the interface of logic systems to equipment powered from 115/240 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc. The applications of the MOC3062 include: Solenoid/valve controls, Static power switches, Temperature controls, AC motor starters, Lighting controls, AC motor drives, E.M. contactors, Solid state relays.

Parametrics

MOC3062 absolute maxing ratings: (1)Storage Temperature TSTG: -40 to +150 ℃; (2)Operating Temperature TOPR: -40 to +85 ℃; (3)Lead Solder Temperature TSOL: 260 for 10 sec ℃; (4)Junction Temperature Range TJ: -40 to +100 ℃; (5)Isolation Surge Voltage(peak AC voltage, 60Hz, 1 sec duration)VISO: 7500 Vac(pk); (6)Total Device Power Dissipation @ 25℃ PD: 250 mW; Derate above 25℃: 2.94 mW/℃; (7)Continuous Forward Current IF: 60 mA; (8)Reverse Voltage VR: 6 V.

Features

MOC3062 features: (1)Simplifies Logic Control of 115/240 Vac Power; (2)Zero Voltage Crossing; (3)dv/dt of 600 V/μs Guaranteed; (4)VDE recognized (File # 94766); (5)Underwriters Laboratories (UL) recognized (File #E90700, volume 2).
